Braza Heat Heat Pump 130 BTU

$5,000.00

Shipping calculated at checkout.

Hurry! Only 1 Left in Stock!

Warranty: No code needed, just head for checkout!

Fast Shipment: All orders are dispatched the next business day!

We will beat any price. We back all products with a 14 days guarantee.

Pickup available at 15749 Pierrefonds Blvd.

Usually ready in 24 hours

View store information

Braza Heat Heat Pump 130 BTU

Default Title

15749 Pierrefonds Blvd.

Pickup available, usually ready in 24 hours

15749 Pierrefonds Blvd.
(438) 835-4471
Montréal QC H9H 3X6
Canada

5145740638

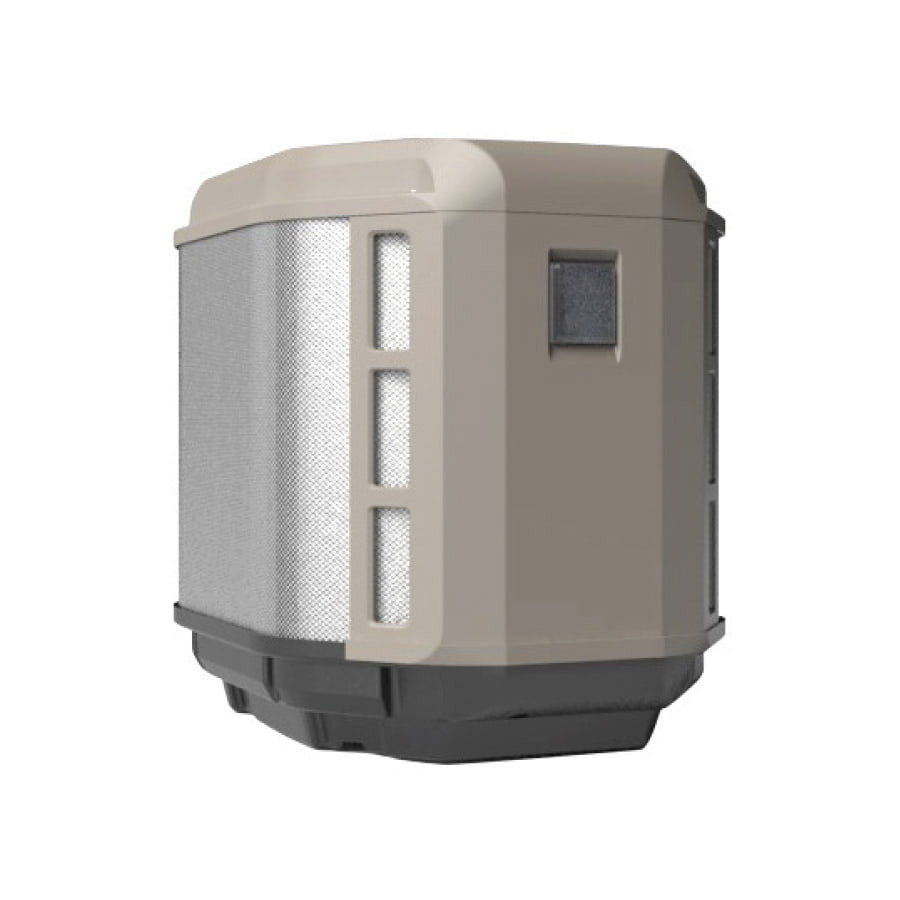

The Braza Heat Heat Pump 130 BTU is a specific model of swimming pool heat pump manufactured by TTI Fab. It is designed to extend the swimming season by heating the pool water efficiently.
Key Specifications

According to the TTI Fab user manual and product specifications:
Capacity: 130,000 BTU/H (HB 130 model).
Voltage: 240V, single phase.
Water Flow: Must operate with water flows between 57 liters per minute (15 U.S. gallons per minute) and 170 liters per minute (45 U.S. gallons per minute) for maximum efficiency. Operating outside this range can damage the unit.
Connections: All Braza models have 1 ½' diameter connections.
Installation: The heat pump must be installed by a certified electrician. A set of valves is recommended to adjust the optimal water flow.
Warranty: Some retailers list a warranty of 5 years for parts and 7 years for labour.

Related products
TOP

WHAT ARE YOU LOOKING FOR?

MY BAG (0)
Your shopping bag is empty.


Thanks for subscribing!

Continue shopping
  • Check the checkbox before submitting the form

Here is a practical size guide for tempered glass pool fences commonly used in North America (including Canada/Quebec). These sizes reflect typical manufacturing standards and pool safety codes.

Tempered Glass Pool Fence – Size Guide

1. Glass Thickness (Most Important for Safety)

Fence Type Recommended Thickness
Framed glass fence 8–10 mm
Semi-frameless fence 10 mm
Frameless glass fence 12 mm (½ inch)

  • 12 mm tempered glass is the industry standard for frameless pool fences because it provides the rigidity needed without metal framing.

  • Tempered glass is about 5–6× stronger than regular glass and breaks into small blunt pieces if shattered.

2. Standard Glass Panel Heights

Height Metric Typical Use
36 in 914 mm Decorative / low barriers
42 in 1067 mm Railings
48 in 1219 mm Standard pool fence height
60 in 1524 mm High safety areas

Most building codes require minimum 48 in (1.2 m) height around pools to prevent children from climbing over.

Some jurisdictions recommend 1.5 m (5 ft) or higher depending on location and exposure.

3. Standard Panel Widths

Glass panels come in multiple widths depending on the layout.

Typical ranges:

Width Metric
24 in 610 mm
30 in 762 mm
36 in 914 mm
42 in 1067 mm
48 in 1219 mm
60–65 in 1524–1650 mm (max typical span)

Manufacturers generally limit glass fence panels to 60–65 inches wide for structural stability.

4. Gap / Spacing Requirements

Component Maximum Gap
Between glass panels ≤ 4 in (100 mm)
Between glass and ground ≤ 4 in (100 mm)

These limits prevent children from passing through the fence.

5. Pool Glass Gate Size

Typical gate specs:

Feature Size
Gate width 30–36 in (760–915 mm)
Gate thickness 8–10 mm tempered
Height Same as fence (usually 48 in)
Hardware Self-closing hinges + latch

Self-closing gates are normally required by pool safety codes.

6. Typical Frameless Glass Panel Specification

Example of a standard panel used in many pool fence systems:

  • Height: 48 in (1219 mm)

  • Thickness: 12 mm tempered glass

  • Width: 36–60 in

  • Edge finish: polished safety edges

  • Mounting: stainless steel spigots or base channel

7. Optional Premium Upgrade

Some high-end installations use:

Type Thickness
Laminated tempered glass 6+6 mm (12 mm total)
Heavy-duty panels 15 mm

This provides extra impact resistance and post-breakage retention.

✅ Quick Recommendation (Most Popular Setup)

  • Glass: 12 mm tempered

  • Height: 48 in (1219 mm)

  • Panel width: 36–48 in

  • Gap: ≤ 100 mm

This configuration works for most frameless residential pool fences.
